Brand Name : Tianfeng
Model Number : ZP35D ZP37D ZP41D
Certification : CE and ISO
Place of Origin : Shanghai, China
MOQ : 1 unit
Price : Welcome to consult
Payment Terms : L/C, T/T, Western Union
Supply Ability : 30 units/month
Delivery Time : 25-30 working days
Packaging Details : export wooden case/ plywood case
Voltage : 220V/380V, 50HZ/60HZ
Condition : New
Warranty : 13 months
After-sales service provided : Engineers available to service machinery overseas
Dimension(l*w*h) : 615*890*1415 mm
Power source : Mechanical, electric
Type : rotary type, Tablet Pressing Machine, High capacity output, ZPW15D ZPW17D ZPW19D granules powder Tablet Press Machine
Material : stainless steel 304
special : with touch screen

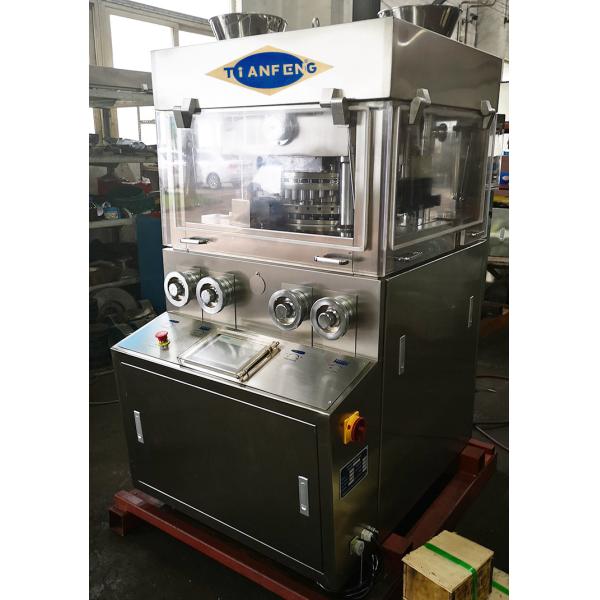

tablet compresson machine ZP35D ZP37D ZP41D 175000 pieces/hour maximum diameter 13 mm pill making with PLC touch screen
Pharmaceutical pill press machine ZP35D/37D/41D rotary tablet press is a double-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets with different shapes, double color and impressed letters on both sides. It is mainly used in manufacturing piece prescription in pharmaceutical, chemical, foods, electronics industry.
 (Note: when manufacturing double color pieces, it not only need to replace components, but also a device for removing and sucking powders which greatly lowers the cost and increases profit.)
Technique Parameters of ZP35D/37D/41D pharmaceutical pill press machine
| Type | ZP33D | ZP35D | ZP37D | ZP41D |
| Dies (sets) | 33 | 35 | 37 | 41 |
| Max. Pressure (KN) | 80 | 80 | 80 | 80 |
| Max. Dia. of tablet (mm) | 13(special)16 | 13(special)16 | 13 | 13 |
| Max. Depth of fill (mm) | 15 | 15 | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 | 6 | 6 |
| Turret speed (r/min) | 5-36 | 5-36 | 14-37 | 14-37 |
| Production capacity (pc/h) | 142000 | 150000 | 160000 | 170000 |
| Motor power (KW) | 4 | 4 | 4 | 4 |
| Overall dimensions (mm) | 980×1240×1690 | 980×1240×1690 | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 | 1700 | 1700 |



Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
ZP33D ZP35D Zp37D Zp41D pill press usually send by sea.
Pre-Sales Service
* Inquiry and consulting support.
 * Sample testing support.
 * View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
 * Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
 2. Each machine with a strict inspection before out of storage.
 3. Each machine use good quality electric elements.
 4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
 5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
 6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
 Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
 2. What about your machine price?
 Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
 3. How can you ensure the machines' quality after we put the order?
 Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
|   |
